Parts

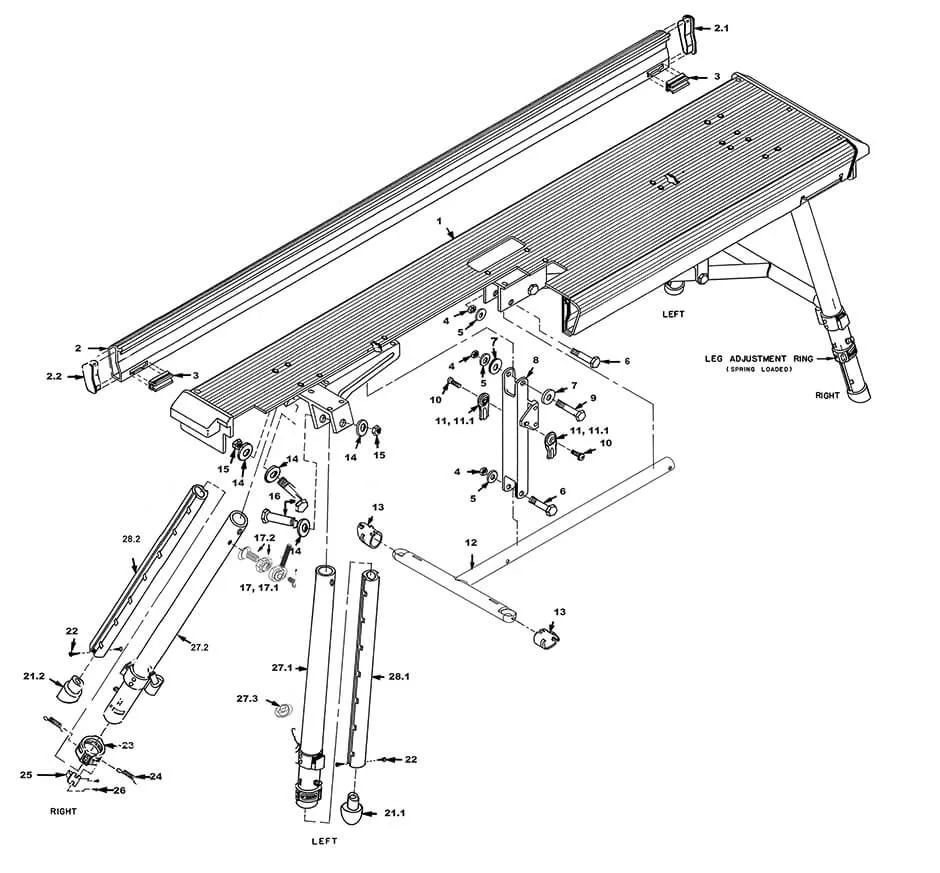

Keep your gear in top shape and on the job. If you need a replacement component, use the schematic below to identify the exact part required for your Kwik Bench.
Note: Individual parts are not available for online purchase at this time. To check availability and place your order, please call us directly at (405) 495-4610.
Part No. — No. per bench ( ) — Price
1 — Bench top (1) — $90.39
2 — Bench step with end caps & pin latch inserts (2) — $26.00
2.1 — Left rubber step end cap (2) — $2.24
2.2 — Right rubber step end cap (2) — $2.24
3 — Step pin latch insert (4) — $0.75
4 — 5/16 lock nut (6) — $0.68
5 — 5/16 washer (6) — $0.15
6 — 5/16 x 1-3/4 linkage bolt (4) — $0.90
7 — 5/16 washer (4) — $0.15
8 — Main linkage·bracket (2) — $9.99
9 — 5/16 x 1-7 /8 track bolt (2) — $0.95
10 — ¼ x 5/8 low head screw (4) — $0.35
11 — Silver female linkage pre- 2012 (4) — $3.11
12 — “T” brace strut with slide locks (2) — $18.18
13 — “T’ brace slide lock (4) — $0.62
14 — 3/8 washer (8) — $0.18
15 — 3/8 lock nut (4) — $0.62
Part No. — No. per bench ( ) — Price
16 — 3/8 x 2-7/16 leg pivot bolt (4) — $1.12
17 — Silver male swivel pre-2012 (4) — $4.55
17.1 — Bronze male swivel with fasteners (4) — $4.55
17.2 — Bronze male swivel fasteners only (4) — $0.90
21.1 — Left rubber foot plug (2) — $2.00
21.2 — Right rubber foot plug (2) — $2.00
22 — #4 x ½ foot plug screw (8) — $0.14
23 — Leg adjustment ring (black) (4) — $1.32
24 — Adjustment ring spring (8) — $0.52
25 — Adjustment ring lock pin (8) — $0.35
26 — #2 x ¼ Adjustment ring lock pin screws (16) — $0.14
27.1 — Left leg complete assy. w/o ext. tube (2) — $34.40
27.2 — Right leg complete assy. w/o ext. tube (2) — $34.40
27.3 — Leg pin bumper/spacer (4) — $0.20
28.1 — Left extension tube with foot plug (2) — $11.94
28.2 — Right extension tube with foot plug (2) — $11.94
